• Pickup bed includes bed assist step (Deleted when (ZW9) pickup bed delete is ordered.)
• Differential, heavy-duty locking rear
• Rear wheel drive
• Air filter, high-capacity
• Air filtration monitoring
• Recovery hooks, front, frame-mounted, Black
• Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
• Suspension Package (Not available with (X31) Off-Road Package.)
• Steering, Recirculating Ball with smart flow power steering system
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator

• Wheels, 17" (43.2 cm) painted steel, Silver
• Tires, LT245/75R17E all-season, blackwall
• Tire, spare LT245/75R17E all-season, blackwall (Included and only available with (QHQ) LT245/75R17E all-season, blackwall tires with (E63) pickup bed models. Available to order when (ZW9) pickup bed delete and (QHQ) LT245/75R17E all-season, blackwall tires are ordered.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Deleted with (ZW9) pickup bed delete.)
• Bumper, front chrome lower
• Bumper, rear chrome with bumper CornerSteps
• CornerStep, rear bumper
• BedStep, Black integrated on forward portion of bed on driver and passenger side (Not available on (ZW9) pickup bed delete.)
• Cargo tie downs (12), fixed rated at 500 lbs per corner
• Moldings, beltline, Black
• Grille (Chrome surround with Black mesh.)
• Headlamps, LED reflector with incandescent turn signals and LED signature Daytime Running Lamps
• Lamps, cargo area cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel.
• LED tail and incandescent stop, turn and reverse light
• Mirrors, outside high-visibility vertical trailering lower convex mirrors, manual-folding/extending (extends 3.31" [84.25mm]), molded in Black
• Glass, solar absorbing, tinted
• Door handles, Black grained
• Tailgate, locking utilizes same key as ignition and door (Deleted with (ZW9) pickup bed delete.)
• Tailgate, standard (Deleted with (ZW9) pickup bed delete.)
• Tailgate, gate function manual, no lift assist (Deleted with (ZW9) pickup bed delete.)
• Tailgate and bed rail protection caps, top (Deleted with (ZW9) pickup bed delete.)

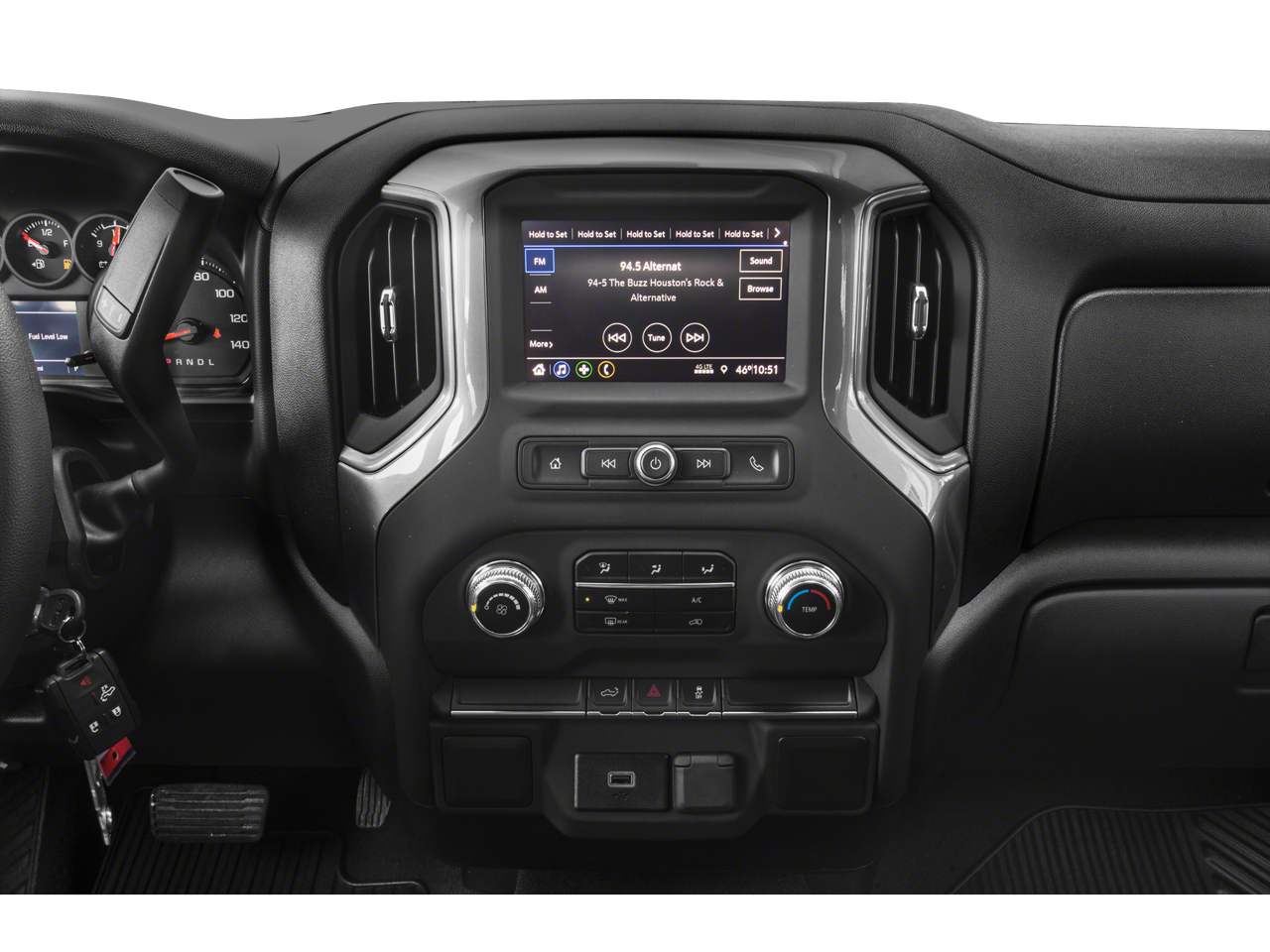

• Audio system, GMC Infotainment System with 7" diagonal color touch-screen AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; featuring Android Auto and Apple CarPlay capability for compatible phones
• Audio system feature, 6-speaker system (Requires Crew Cab or Double Cab model.)
• Bluetooth® for phone, connectivity to vehicle infotainment system

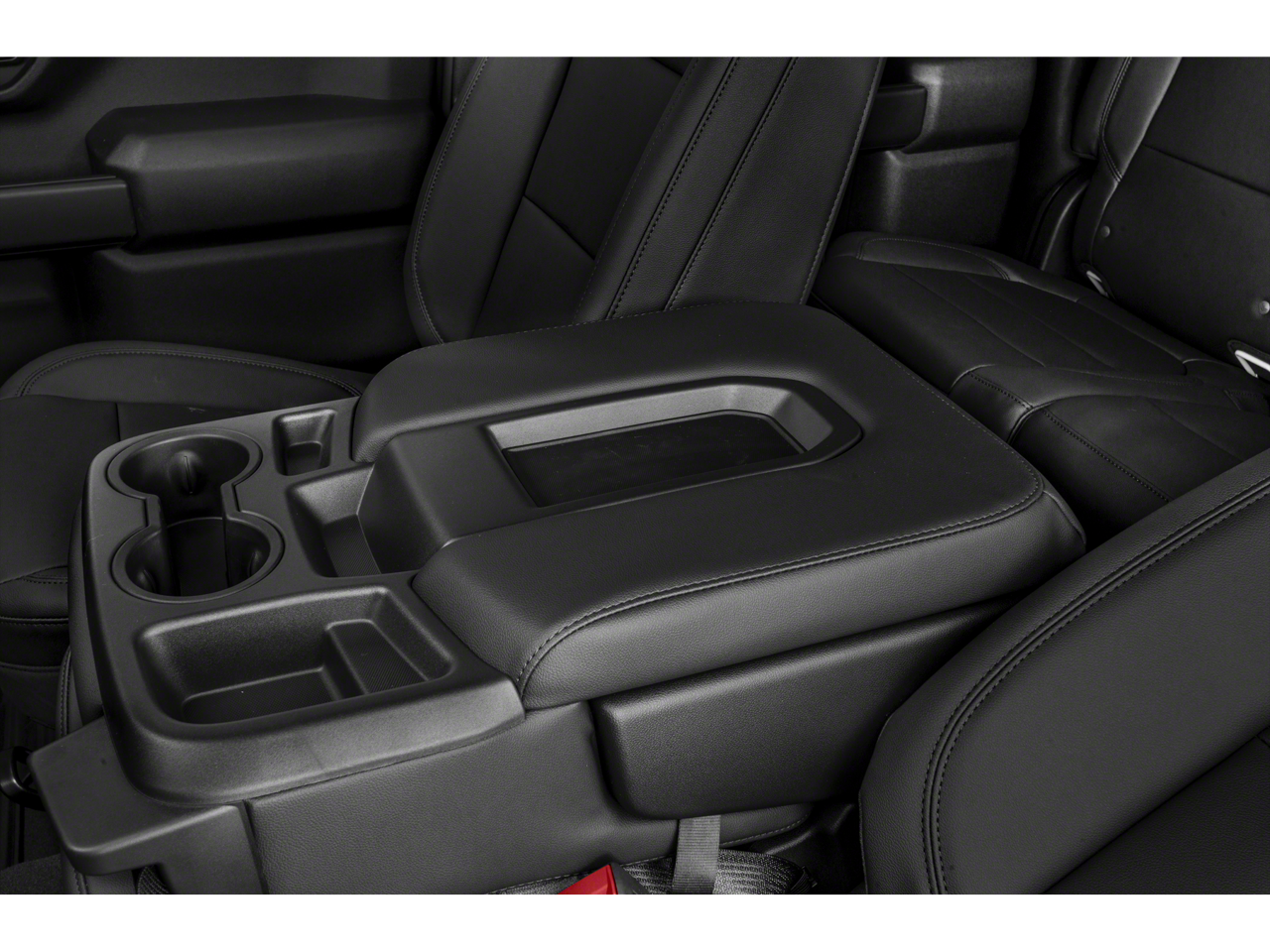

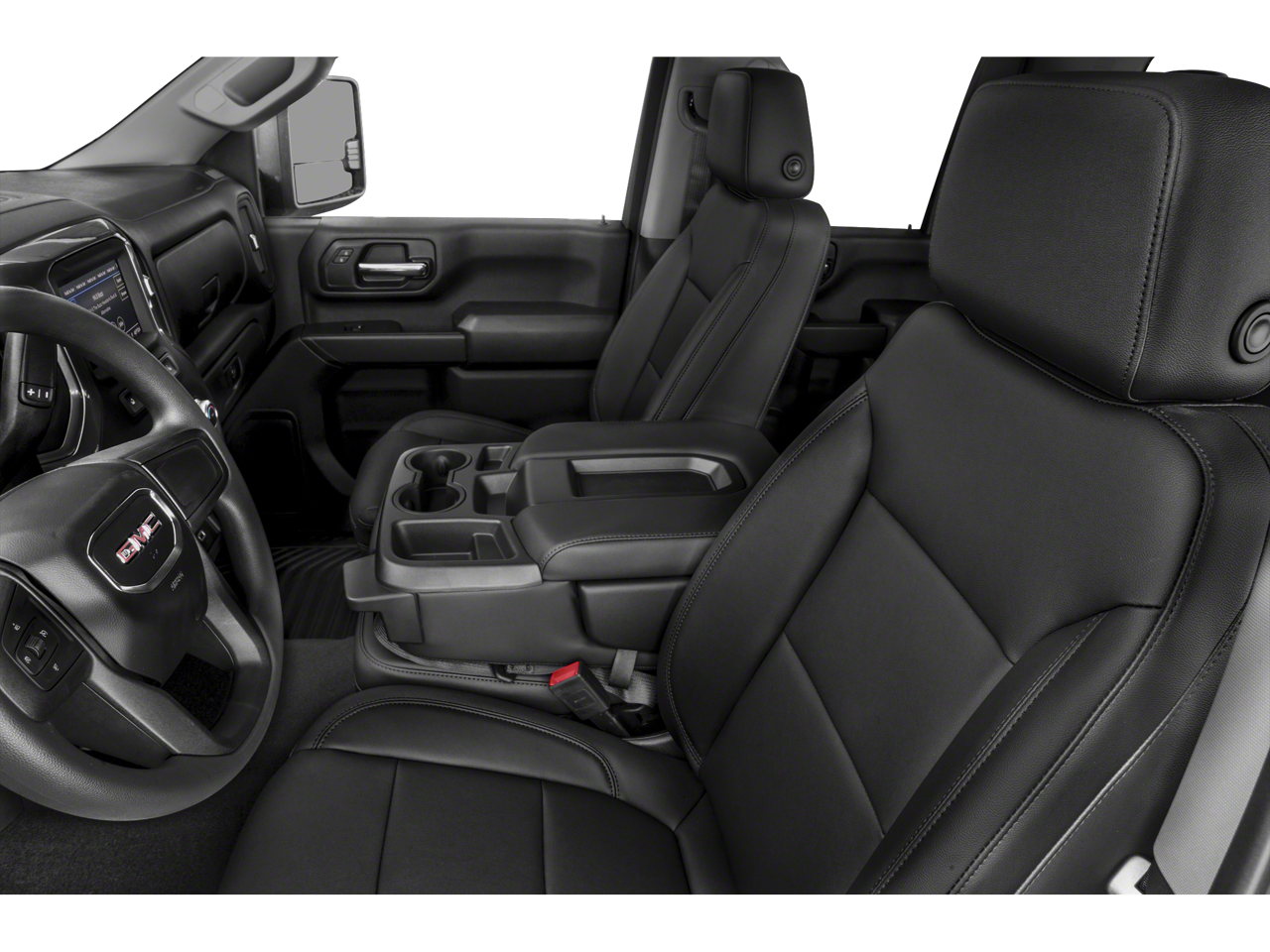

• Seats, front 40/20/40 split-bench (no storage)
• Seat trim, Vinyl
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual

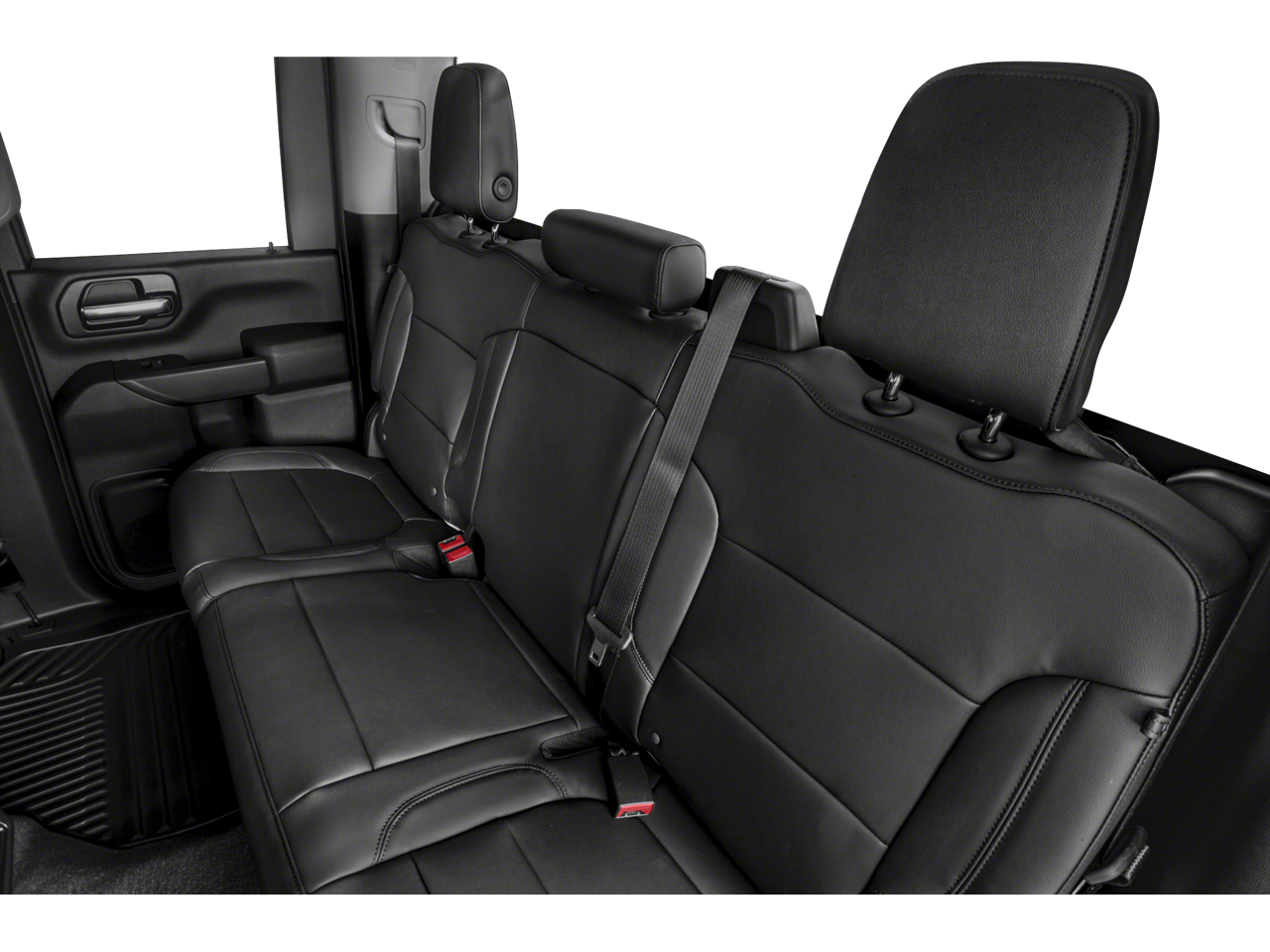

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Not available with Regular Cab model.)
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)

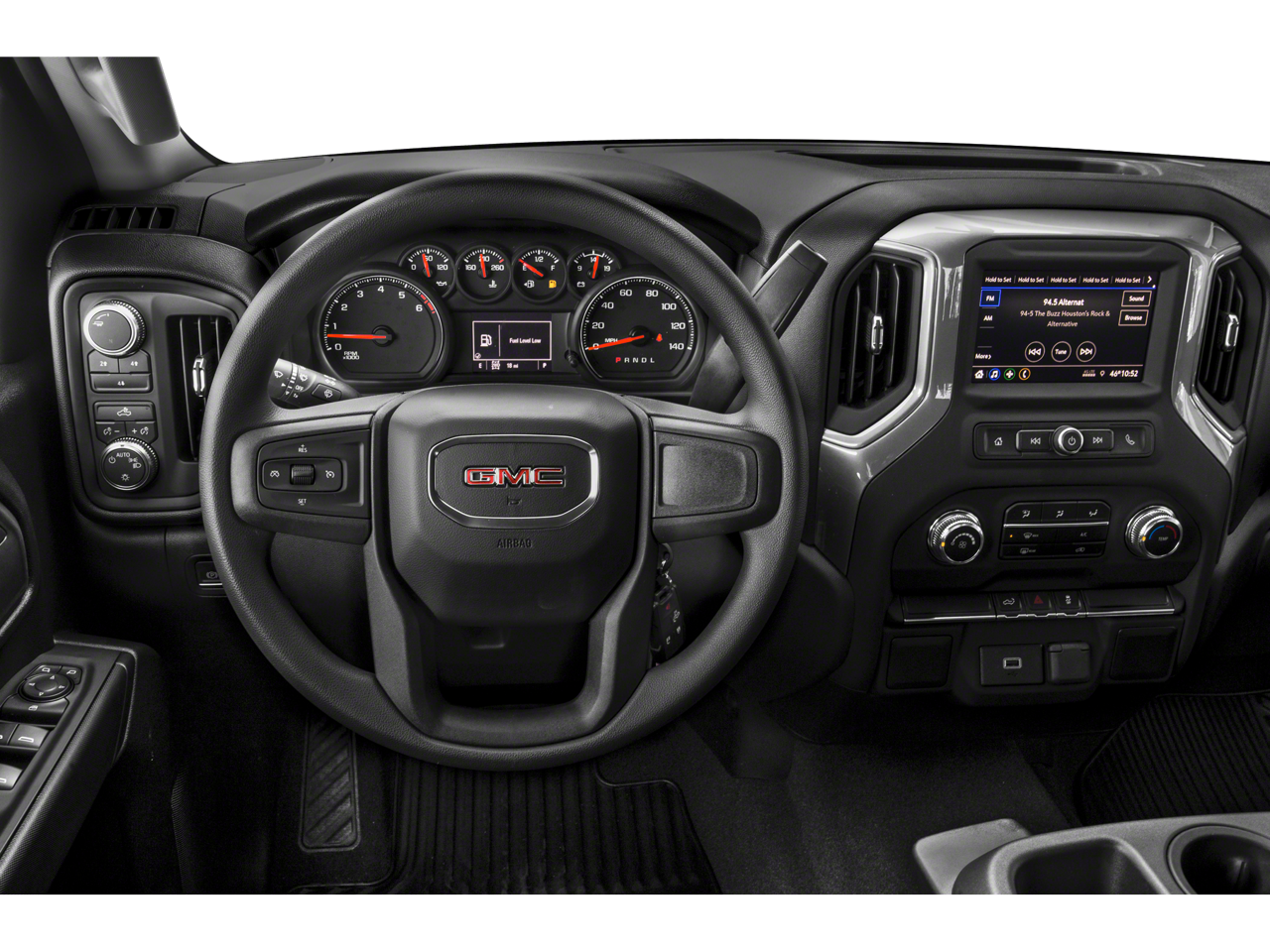

• Steering wheel, urethane
• Steering column, Tilt-Wheel, manual with wheel locking security feature
• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display, located in radio display
• Rear Seat Reminder (Requires Crew Cab or Double Cab model.)
• Windows, power front, drivers express up/down (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package.) (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package or (ZLQ) Fleet Convenience Package.)
• Window, power front, passenger express down (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package.) (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package or (ZLQ) Fleet Convenience Package.)
• Windows, power rear, express down (Not available on Regular Cab models.)
• Door locks, power (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package.) (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package or (ZLQ) Fleet Convenience Package.)
• USB port, located on instrument panel
• Power outlet, front auxiliary, 12-volt
• Air conditioning, single-zone
• Air vents, rear (Not available with Regular Cab model.)
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps, LED signature lighting
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera (Deleted with (ZW9) pickup bed delete.)
• Hitch Guidance dynamic single line to aid in truck trailer alignment for hitching (Deleted with (ZW9) pickup bed delete.)
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

• Trailering Information Label provides max trailer ratings for tongue weight, conventional, gooseneck and 5th wheel trailering (Not available on (ZW9) pickup bed delete.)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

TIRE, SPARE LT245/75R17E ALL-SEASON, BLACKWALL

• (STD)

UPFITTER SWITCH KIT, (5)

• Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories. Kit with all required parts will be shipped loose with the truck for installation by the dealer or upfitter at customer expense. Installation instructions and technical assistance available at www.gmupfitter.com.

REAR CAMERA KIT

• Kit includes camera
• fixed position bracket & 19 ft cable with attachment clips. Rear camera radio calibration provided from the factory. See Upfitter Integration Bulletin for installation instructions at www.gmupfitter.com

BACK-UP ALARM CALIBRATION

• This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting

• Convenience Package: Remote Keyless Entry; Deep-Tinted Glass; Outside Power-Adjustable Black Mirrors; Electric Rear-Window Defogger; Steering Wheel-Mounted Cruise Control
• Preferred Equipment Group 1SA: Solar Absorbing Glass; 6.6L V8 with Direct Injection and Variable Valve Timing Engine; Chrome Surround Grille with Black Mesh; Power Rear Windows with Express Down; Front 40/20/40 Split-Bench Seats with No Storage
• Spare LT245/75R17E AS BW Tire
• Integrated Trailer Brake Controller
• Steering Wheel-Mounted Cruise Control
• Electric Rear-Window Defogger
• 120-Volt Instrument Panel Power Outlet
• Deep-Tinted Glass
• OnStar and GMC Connected Services Capable
• Upfitter Switch Kit (5)
• SEO: Rear Camera Kit
• SEO: Back-Up Alarm Calibration
• Apple CarPlay/Android Auto smart device mirroring
• 4G LTE Wi-Fi Hotspot capable mobile hotspot internet access
• Brake assist system
• Cruise control with steering wheel mounted controls
• Primary monitor touchscreen

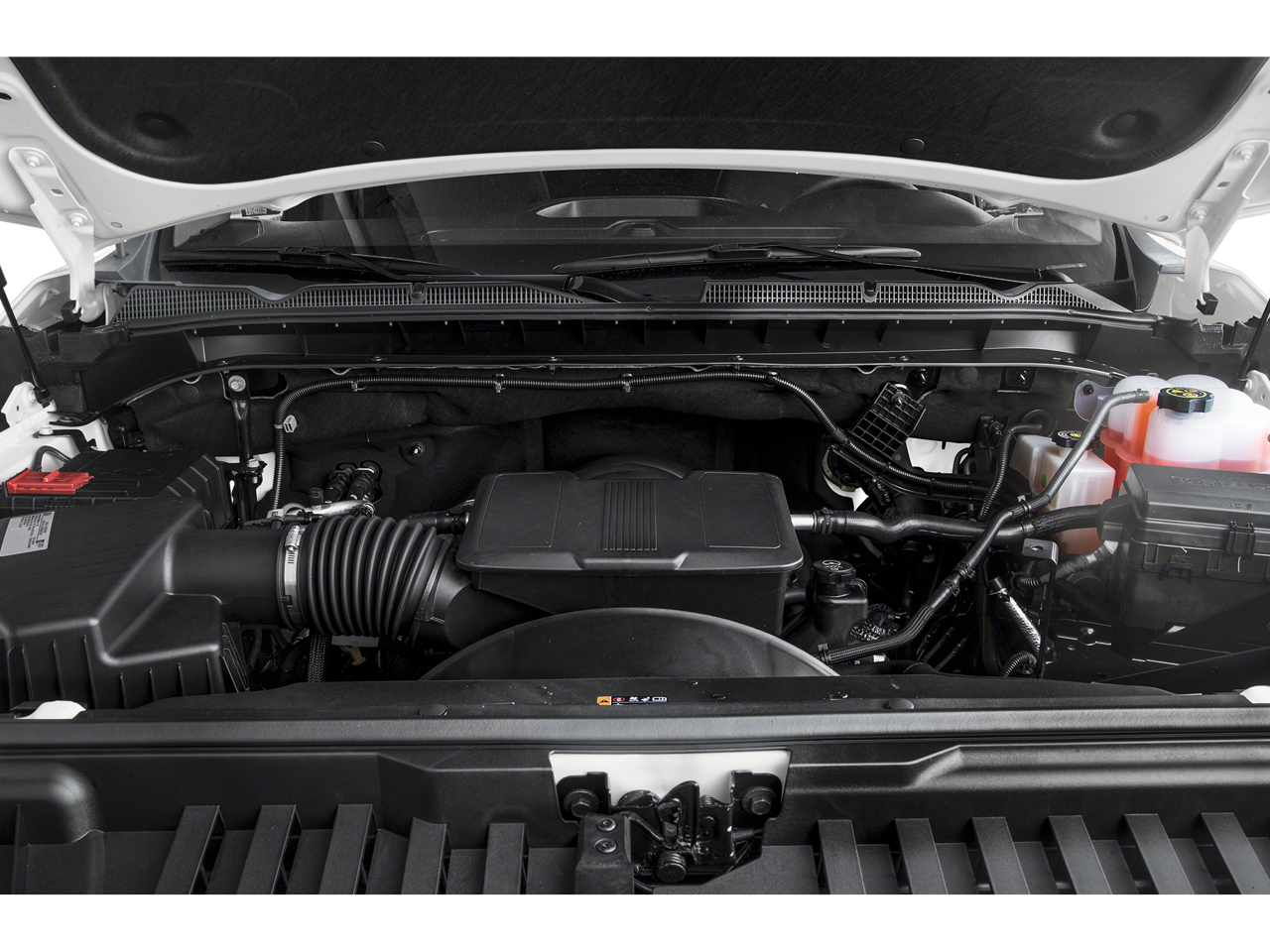

• 6.6L V-8 gasoline direct injection
• variable valve control
• regular unleaded
• engine with 401HP
• Teen Driver restricted driving mode
• Auxiliary camera
• Keyfob window control
• Bluetooth® wireless audio streaming
• Immobilizer
• Bluetooth® handsfree wireless device connectivity
• Trailer brake controller
• Trailer sway control
• External memory control
• Internet radio capability
• StabiliTrak w/Proactive Roll Avoidance electronic stability control system with anti-roll
• Hill start assist
• Rear Seat Reminder rear seat check warning
• LED daytime running lights
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Manual tilting steering wheel
• Wheel hub covers
• Manual extendable trailer mirrors
• Upfitter switches
• 17 x 7.5-inch front and rear silver steel wheels
• LT245/75SR17 AS BSW front and rear tires
• Vinyl front seat upholstery
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Curtain first and second-row overhead airbags
• Passenger front impact airbag
• Seat mounted side impact front passenger airbag
• Airbag occupancy sensor
• Auto-locking doors
• 6-speed automatic
• Tow/Haul Mode selectable mode transmission
• Vinyl rear seat upholstery
• Manual climate control
• Rear under seat climate control ducts
• Exterior temperature display
• Transmission electronic control
• Sequential shift control
• Automatic
• Reflector headlights
• LED low and high beam headlights
• Auto on/off headlight control
• Delay-off headlights

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 170
• Maximum Alternator Watts: N/A
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6390
• Curb Weight - Front (lbs): 3599
• Curb Weight - Rear (lbs): 2761
• Gross Vehicle Weight Rating Cap (lbs): 10200
• Gross Combined Wt Rating (lbs): 24000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1450
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4225
• Maximum Trailering Capacity (lbs): 14500
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 3-Stage Leaf
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZHQ
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 2579
• Rear Tire Capacity (lbs): 3197
• Spare Tire Capacity (lbs): 3197
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17" x - TBD -
• Rear Wheel Size (in): 17" x - TBD -
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 53.9
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 162.48
• Length, Overall (in): 256.46
• Width, Max w/o mirrors (in): 81.85
• Height, Overall (in): 79.8
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 55.2
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.15
• Ground Clearance, Rear (in): 10.15
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.27
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.55
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 83.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 39.88
• Second Leg Room (in): 35.24
• Second Shoulder Room (in): 64.88
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: GMC Sierra 2500HD
• Body Style: Double Cab Pickup
• Body Code: E63
